Description

2022 The Newest 10000 Counts Automatic High Precision  LCD Screen Intelligence Electric Multi function Multimeter



Purpose

It’s used for to measure DC AC voltage, DC AC current, Resistance , capacitance, Frequency etc





The Mainly specifications

Specifications	Range	Accuracy
DC voltage	99.99mV/999.9mV;9.999V/99.9V/750V	±(0.5%+3)
AC Voltage	99.99mV/999.9mV;9.999V/99.9V/750.0V	±(0.8%+3)
DC current	99.99uA/999.9uA;99.99mA/999.9mA	±(0.8%+3)
	9.999A	±(1.2%+3)
AC current	99.99uA/999.9uA;99.99mA/999.9mA	±(1.0%+3)
	9.999A	±(1.5%+3)
Resistance	99.99Ω~999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ	±(0.8%+3)
	9.999MΩ/99.99MΩ	±(1.2%+3)
Capacitance	9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF	±(4.0%+3)
	9.999mF/99.99mF	±(5.0%+3)
Frequency	99.99HZ/999.9Hz/9.999kHz/99.9kHz/999.9kHz/9.999MHz	±(1.0%+3)
Duty	0.1%~99.9%	±(1.0%+3)
Temperature	-40~100	±(0.5%+3)
Counts		10000 ounts
Display		VA color display screen
Bargraph		√
SMART function (AC/DC voltage,resistance and continuity)		√
Automiatc identification of current input		√
Live test		√(sound and light alarm)
NCV		√(sound and light alarm)
Diode test		√(sound and light alarm)
Continuity test		√(sound and light alarm)
MAX/MIN/AVG		√
Relative measurement		√
Data hold		√
Ture RMS		√
Fuse Burning prompt function		√
Low battery indication		√
Auto power off		√
Flashlight
input jack LED indication		√
Power		3*AAA batteries
Weight		approx 255g
Size		165*85*25mm
Safety Rating		EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CATIV 600V

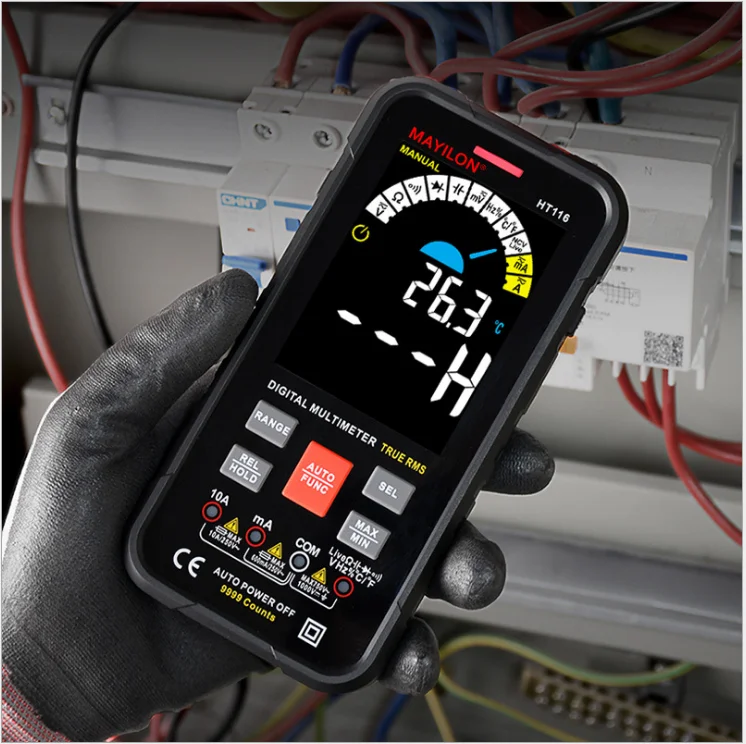

Multimeter Picture Display





Certificate
