Description
This digital clamp multimeter is powered by 2 AAA battery,low energy consumption makes you dont need to change battery often.
It features auto power off function,so you dont need to worry if you forgot turn off the device.
The clamp range is 28mm,and it is fit for students,electrician,home appliance maintainer to use.
The LCD screen can display value clearly,features backlight function,improve your using experience.
It is made of durable material,it is long lasting,not easy to be damaged and can be used for a long time.
Specification:
Material: Plastic.
Color: Yellow and black.

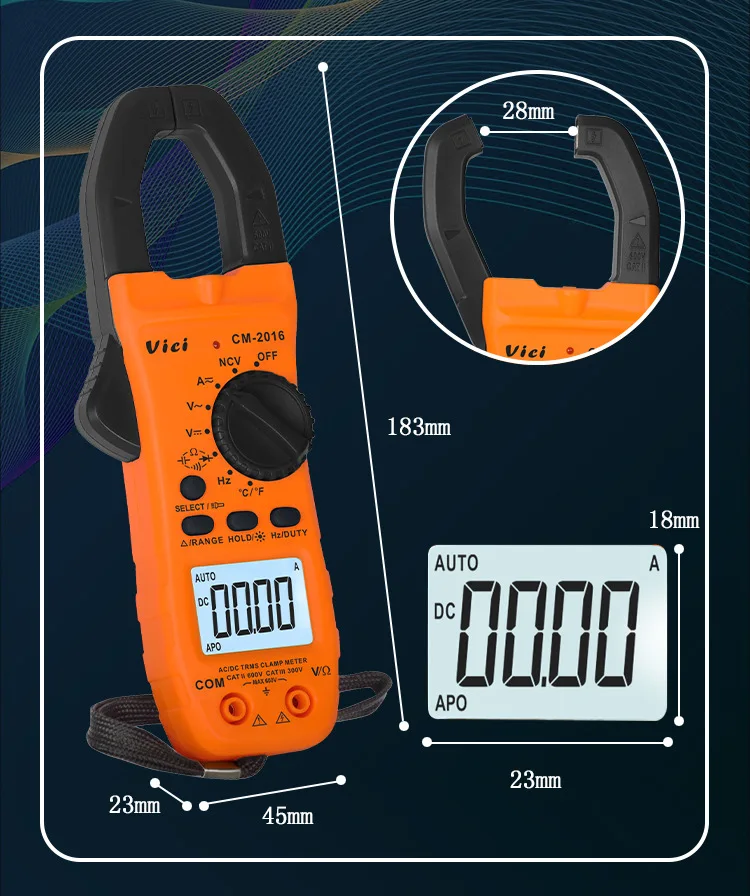

Size: 178*54*23mm.

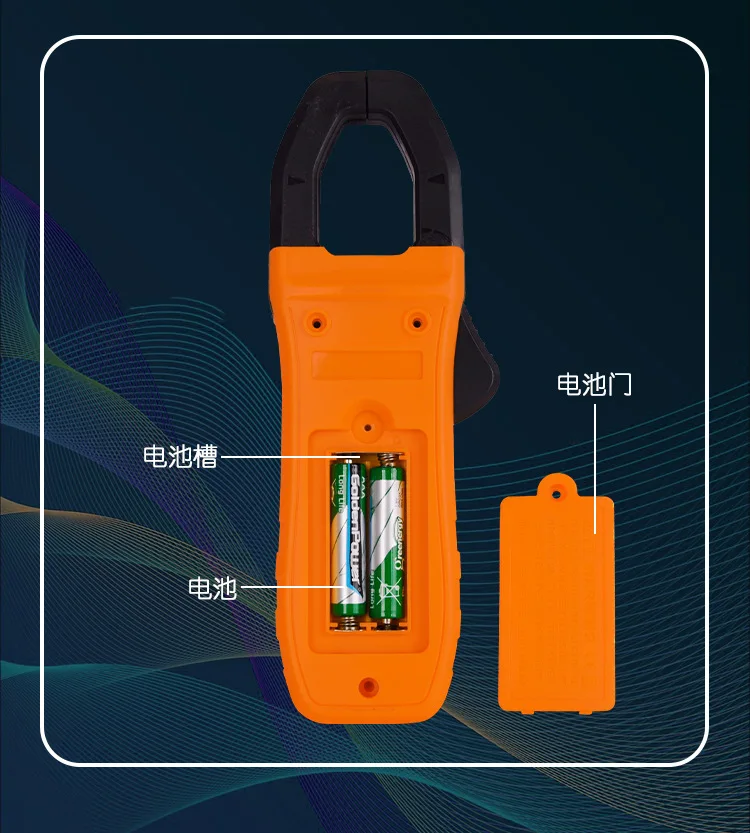

Battery: 2* AAA battery.(Not included)
AC voltage range:600mV/6V/60V/600V
AC voltage accuracy:±(1.5%+5)/±(1.0%+5)
DC voltage range:600mV/6V/60V/600V
DC voltage accuracy:±(1.0%+5)/±(0.5%+5)
AC current range: 600A
AC current accuracy: ±(2.0%+3)
AC current range: 600A
AC current accuracy:±(2.0%+3)
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance accuracy: ±(0.8%+5)/±(0.8%+3)/±(1.0%+25)
Capacitance range: 6nF/60nF/600nF/6μF/60μF/600μF/6000μF
Capacitance accuracy: ±(3.5%+20)/±(5%+10)
Frequency range: 20MHz
Frequency accuracy: ±(1.0%+3)
Temperature Range: -40~1000°/0-1832°
Temperature accuracy: ±(1%+5)/±(1.5%+15)
Sampling speed:3 times per second
Auto power off:yes

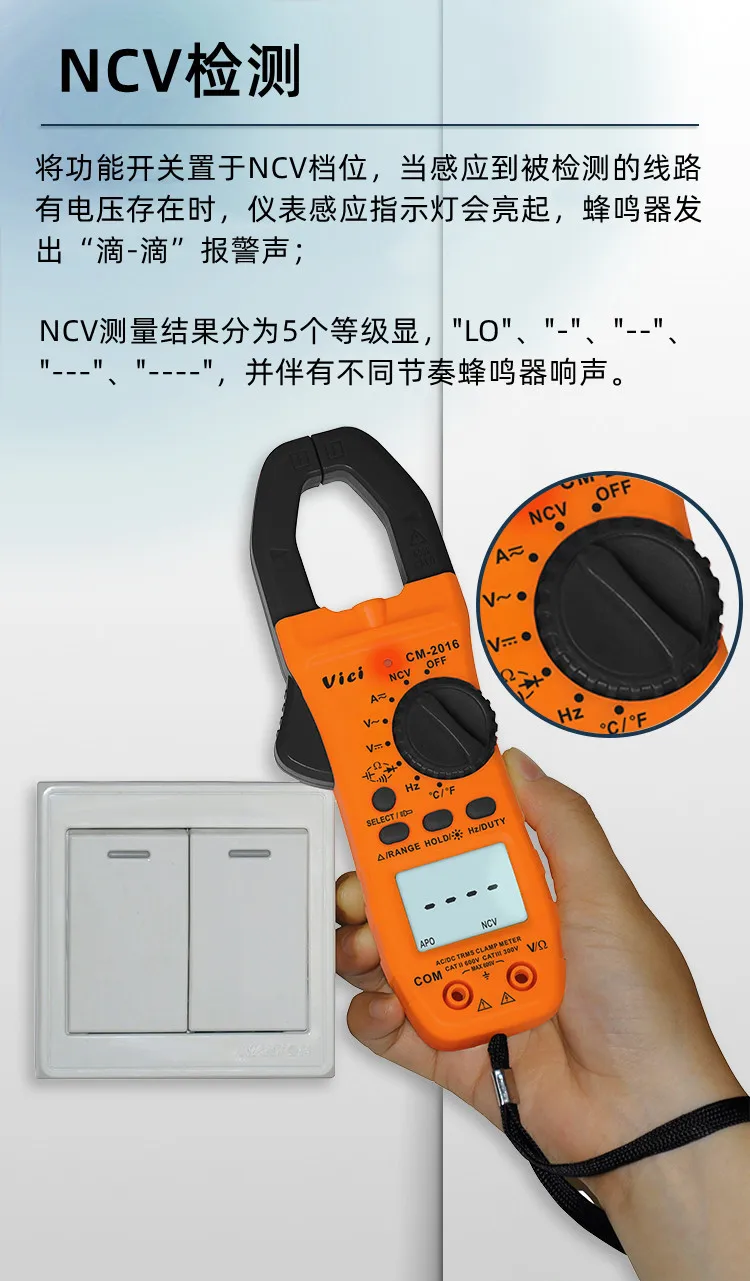

NCV test:yes
Duty ratio test:yes
Diode test:yes
Data hold:yes
LCD backlight:yes
Continuity buzzer:yes
Auto power off:yes
Low power indication:yes
Over-load indication:yes
Auto negative polarity indication:yes
Note
There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.
|
Brand Name
|
Vici
|
|
Model Number
|
CM2016
|
|
Measuring Current Range
|
600A
|
|
Measuring Voltage Range
|
600mV/6V/60V/600V
|
|
Measuring Resistance Range
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
|
|
Measuring Capacitance Range
|
6nF/60nF/600nF/6μF/60μF/600μF/6000μF
|
|
Operating Temperature
|
-40~1000°/0-1832°
|
|
Dimensions
|
178*54*23mm
|
|
Weight
|
200g
|
|
Material
|
Plastic
|
|
Color
|
Yellow and black
|
|
Size
|
178*54*23mm
|
|
Battery
|
2* AAA battery.(Not included)
|
