Description
Product Description
|
Function
|

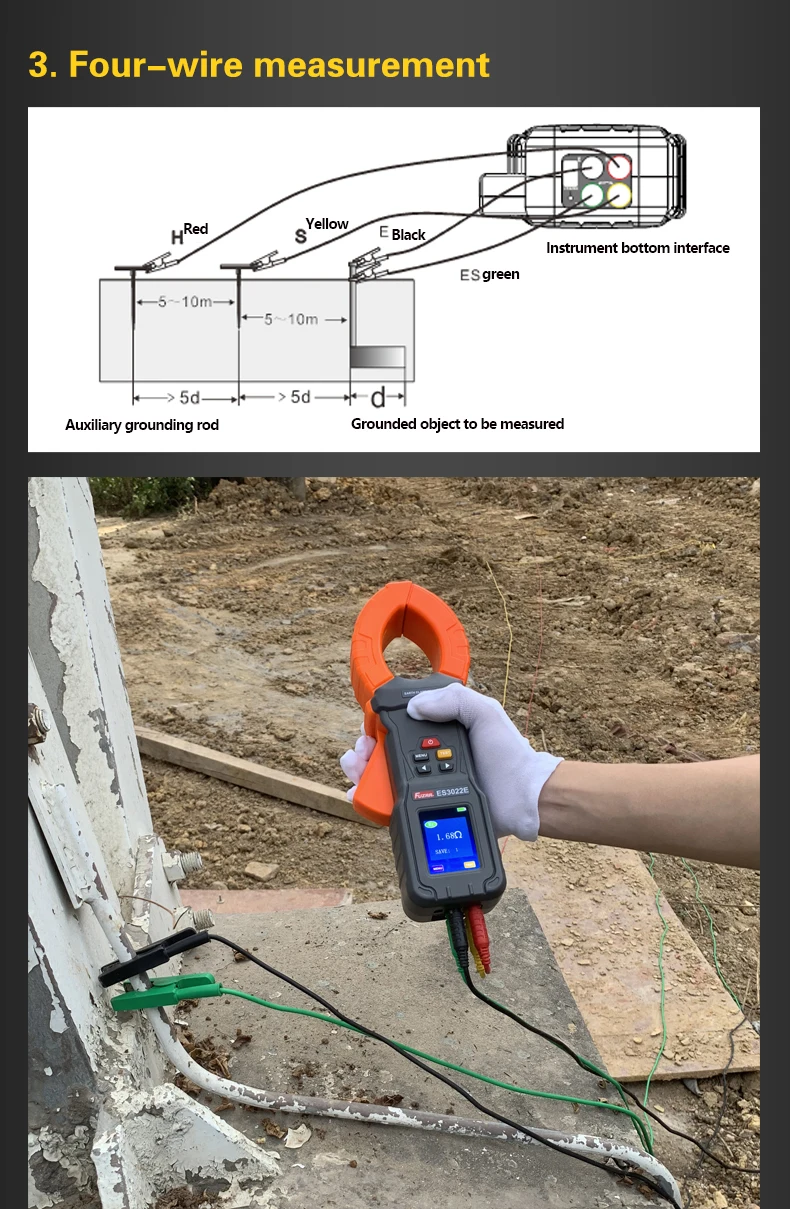

Ground resistance test, loop resistance test, AC current test, AC voltage test
|
|
Accuracy guaranteed temperature and humidity
|
23℃±5℃, below 75%rh
|
|
Power Supply
|
DC 3.7 Lithium battery
|
|
Resistance resolution
|
0.01Ω
|
|
Current resolution
|
0.001mA
|
|
Voltage resolution
|
0.01V
|
|

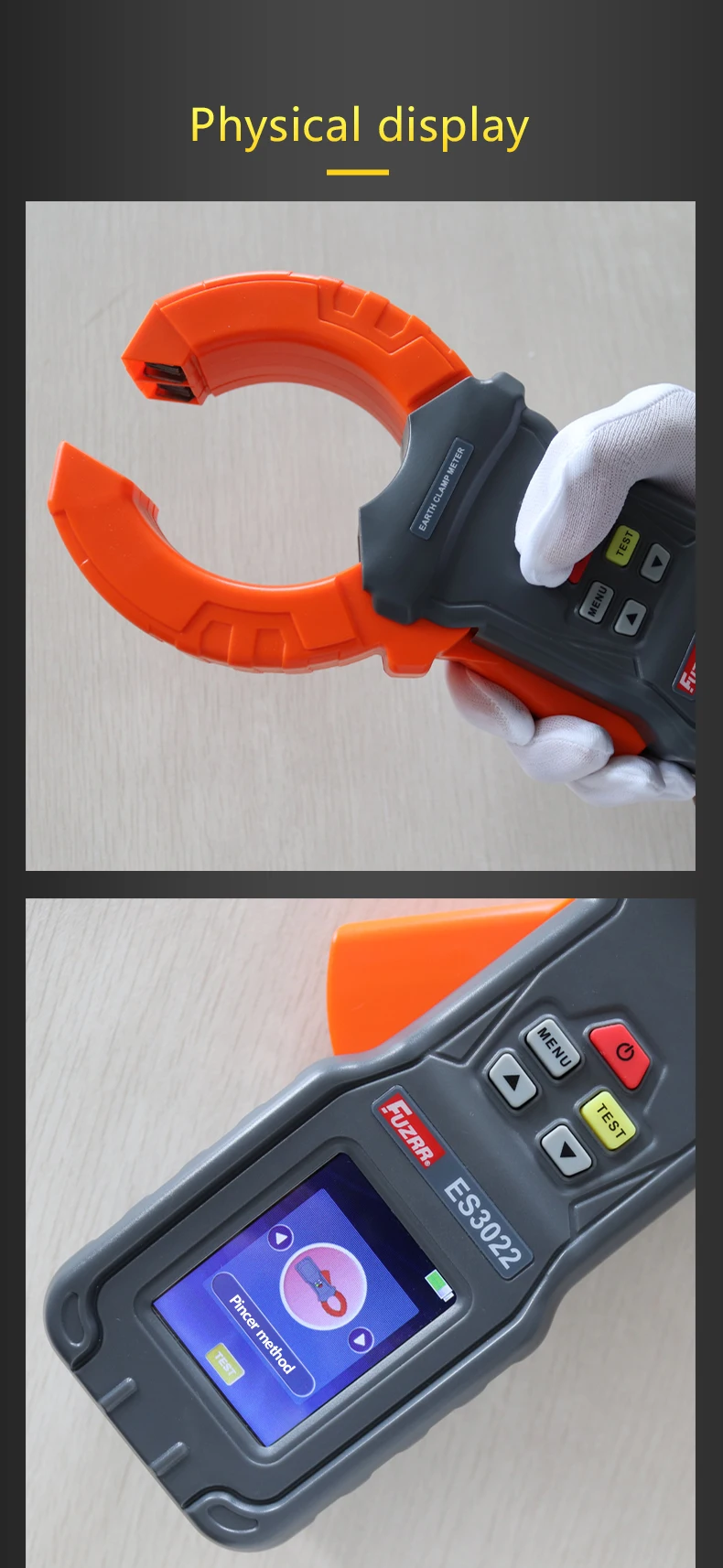

Clamp Size
|
68mm
|
|
Display
|
2.4 inch color LCD screen
|
|
LCD Size
|
46mm×29mm
|
|
Meter Dimension
|
273mm×106mm×53mm
|
|
measure time
|
1 time/sec
|
|

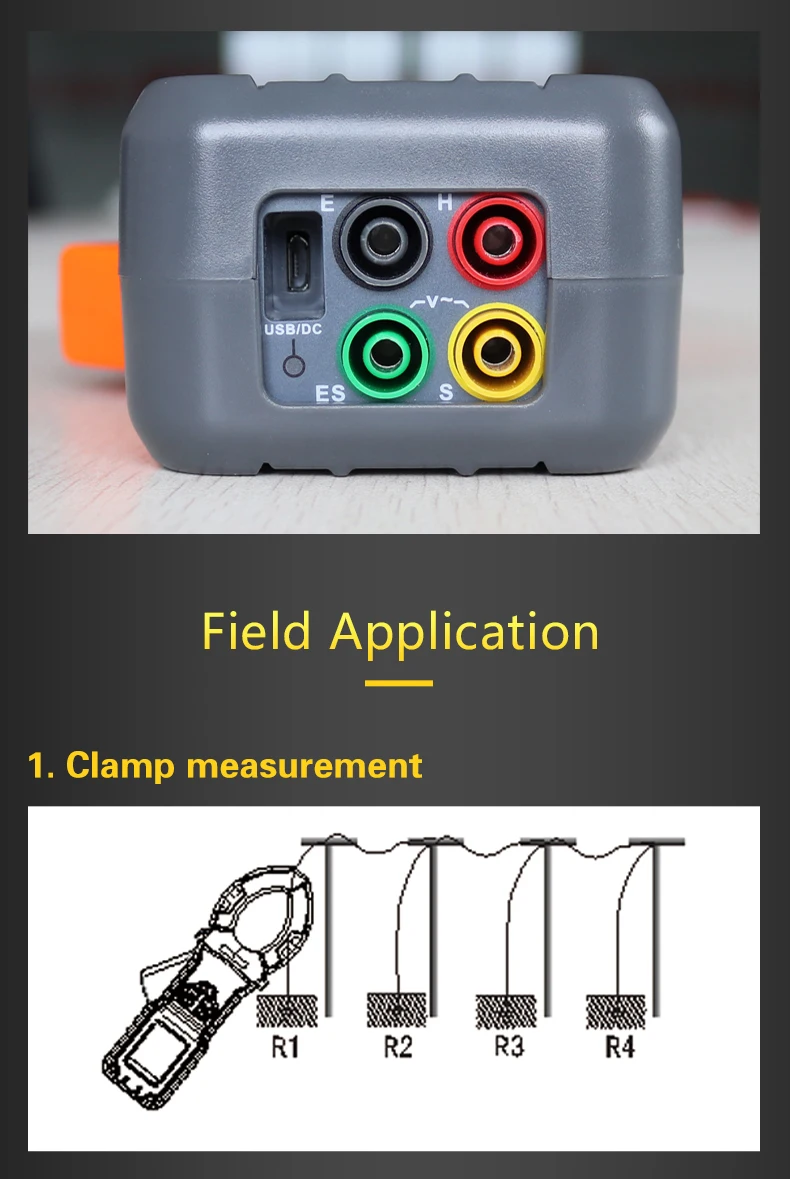

USB
|
With USB interface,uploaded the data to the computer, saved and printed
|
|
Communication line
|
USB communication line 1
|
|
Data storage
|
Maximum 500 groups of data, display “FULL” symbol to indicate that the storage is full
|
|
Overflow display
|
“OL” symbol indication when over-range overflow
|
|
Alarm function
|
When the measured value exceeds the alarm set value, an alarm will be issued
|
|
battery voltage
|
Real-time display of battery power, reminding to charge in time when battery voltage is low
|
|
Automatic shut-down
|
Turn off automatically after 15 minutes
|
|
Power consumption
|
750mA MAX
|
|
Quality
|
Meter: 975g (including battery)
|
|
Working temperature and humidity
|
-10℃～50℃; Below 80%rh
|
|
Storage Temperature and Humidity
|
-10℃～60℃; below 70%rh
|
|
Insulation Resistance
|
20Ω or more (500V between circuit and outside)
|
|
Pressure Resistance
|
AC 3700V/rms(between circuit and outside)
|
|
External magnetic field
|
＜40A/m
|
|
External electric field
|
＜1V/m
|
|
Suitable for Safety Regulations
|
IEC61010-1(CAT Ⅲ 300V、CAT IV 600V、Pollution Degree 2);
IEC61010-031；IEC61557-1(Ground resistance) |
