Description

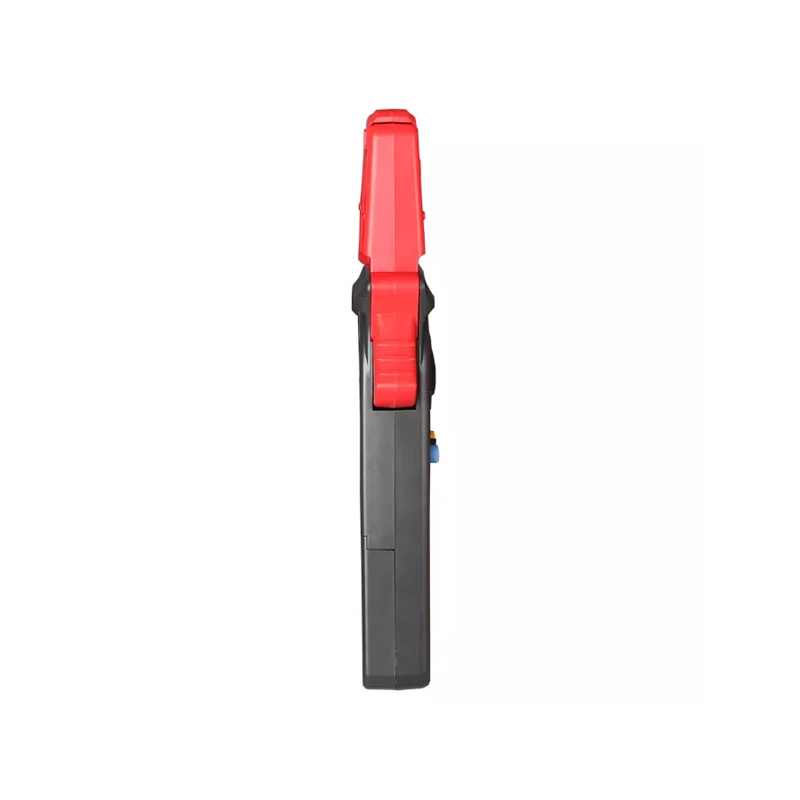

UNI-T UT202 Digital Multimeter 400A-600A Clamp meter with Temperature Auto Range
This series is UNI-T’s entry level digital clamp meter. It is a great choice for measuring residential and commercial power wires. UT202 and UT204A come with point contact temperature probe, perfect for working in HVAC.
Features
1. Auto range
2. Data hold/auto power off
3. MAX mode
4. 3 times/s sampling rate
5. Low battery/over-range indication and auto polarity display
Models & Comparison UT201 UT202 UT202A UT203 UT204A
| Specifications | Range | UT201 | UT202 | UT202A | UT203 | UT204A |
| AC current (A) | 400A | ±(1%+9) | ±(1%+9) | ±(2.5%+5) | ||
| 600A | ±(1.5%+5) | ±(2.5%+5) | ||||
| DC current (A) | 400A | ±(2%+3) | ||||
| 600A | ±(2%+5) | |||||
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1%+5) | ±(1%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| 40MΩ | ±(1%+2) | ±(1%+2) | ||||
| Capacitance (F) | 100μF | ±(4%+3) | ||||
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.5%+3) | |||
| Temperature | -40°C~1000°C | ±(1%+7) | ±(2.5%+3) | |||
| -40°F~1832°F | ±(1%+8) | |||||
| Display count | 2000 | 2000 | 2000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | √ | √ | |
| General Characterisitics | ||||||
| Power | UT201/UT202: 1.5V battery (R03) x 2; UT202A/UT203/UT204A: 9V battery (6F22) (For aircraft safty, battery not included) | |||||
| Display | 35.6mm x 18mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT201/UT202/UT202A: 220g; UT203/UT204A: 260g | |||||
| Product size | UT201/UT202/UT202A: 210mm x 75.6mm x 30mm; UT203/UT204A: 208mm x 76mm x 30mm | |||||
| Standard accessories | Batteries, test leads, carrying bag, point contact temperature probe (UT202/UT204A) | |||||
| Standard individual packing | box, English manual | |||||
| Standard quantity per carton | 48pcs | |||||
| Standard carton measurement | 485mm x 320mm x 385mm | |||||
| Standard carton gross weight | UT201: 16.2kg; UT202: 16.4kg; UT202A/UT203: 16.5kg; UT204A: 17kg | |||||
